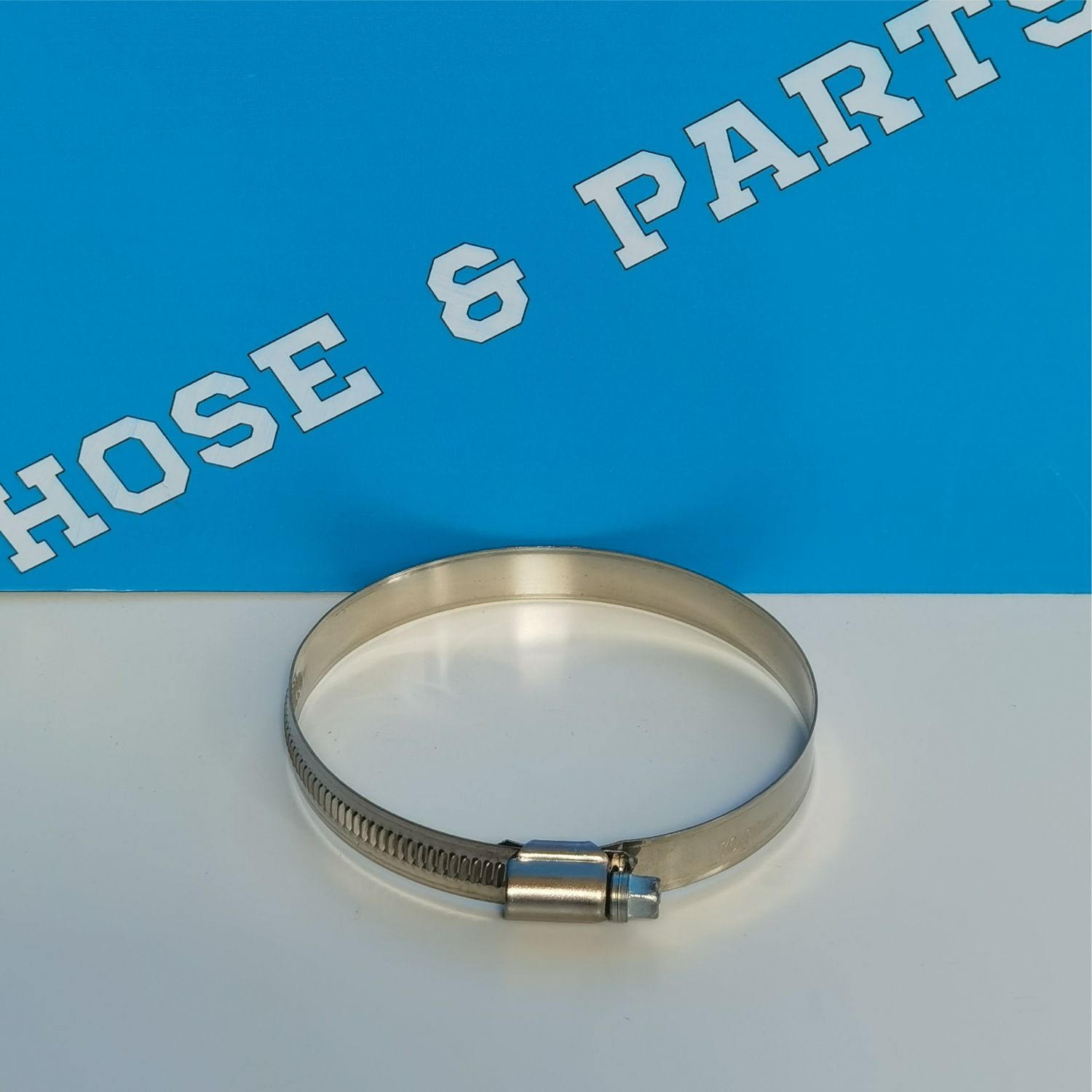

Zebra Clamp 70-90

Description

Zebra Clamp 70-90

12mm Band Width
hex galvanized steel screw

Clamping Range
70 mm – 90 mm

• Features an “outrigger” support that prevents clamp tilting when tightening
• No edge pressure prevents hose damage or gouging
• Housing saddle is not welded or riveted, lays flat on inside of band
• Band is embossed, is smoothed off and has raised edges to prevent damaging the hose

Asymmetrical body

• Even distribution of force
• Clamp head does not tilt away during tightening

Smooth / indented strap interior, round edges
Prevents injury and hose damage

Application

• Fuel line systems
• Lines carrying air
• Cooling water / Heating
• General retainer / Fastener

The off-centered cradle prevents tilting of the clamp when tightening, thus preventing hose damage.

The outer edge support directs the end of the clamp away from the head of the screw during tightening.

Short saddle, without welds or rivets fits snugly within the clamp, giving uniform pressure over the entire contact area of the clamp.

Embossed clamp band and rounded elevated edges prevent any damage to the hose surface.
